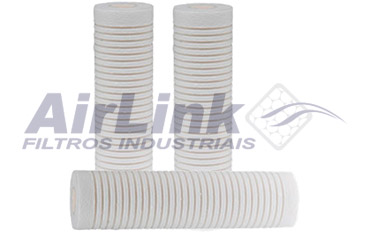

Slotted Polypropylene Filters: High Performance and High Efficiency

Applications of Slotted Polypropylene Filters

These filters offer a Excellent performance in liquid filtration in various segments. Among the main applications are:

Pre-filtration in Reverse Osmosis: It protects the membranes and increases the efficiency of the system.
Water Filtration: Ideal for human consumption, industrial use and production processes.
Beverage Industry: It filters liquids, guaranteeing quality and retention of unwanted particles.
Retention of Solids in Liquids: Efficient capture of sand, mud, sludge and other contaminants.

Advantages of Slotted Polypropylene Filters

AirLink Filters’ polypropylene slotted filters are designed to provide a precise retention of solid particles such as sand, mud, and sludge. Their high resistance to chemical and mechanical variations makes them ideal for a wide variety of applications.

Key benefits include:

Broad Chemical Compatibility: Suitable for various uses, including the industrial and commercial sectors.
Low Pressure Loss: It maintains the efficiency of the filtration system, reducing energy consumption.
High Contaminant Retention Capacity: Efficient capture of solid particles, guaranteeing the purity of liquids.
Various Configurations Available: Different heights and connection types to meet the specific needs of each application.

AirLink Filtros offers a complete line of slotted polypropylene filters, developed 100% in pure polypropylene this ensures high performance and durability. Through a continuous and automated process, each filter is manufactured with rigorous consistency and quality.

Model (AL-A/RD)	Dimensions (Altura × Ø Ext.)	Caudal * (L/h)	∆P máx @20 °C	Temp. máx
5″ × 2 ½″	127 × 63 mm	600	4 kgf/cm²	60 °C
10″ × 2 ½″	254 × 63 mm	1.200	4 kgf/cm²	60 °C
20″ × 2 ½″	508 × 63 mm	2.000	4 kgf/cm²	60 °C
30″ × 2 ½″	762 × 63 mm	2.300	4 kgf/cm²	60 °C
40″ × 2 ½″	1016 × 63 mm	2.600	4 kgf/cm²	60 °C
10″ × 4 ½″	254 mm × 114 mm	3 000	4 kgf/cm²	60 °C
20″ × 4 ½″	508 mm × 114 mm	6 000	4 kgf/cm²	60 °C

AirLink Quality and Commitment

In AirLink Filtros we are committed to offering high-quality filtration solutions that meet the most rigorous market demands. With a modern infrastructure and a highly qualified team, we guarantee reliable products with an excellent cost-benefit ratio.

Our ongoing commitment to the innovation and quality this makes us a benchmark in slotted polypropylene filters, ensuring safety, efficiency and a long service life.

AirLink Filters slotted polypropylene filters they are the ideal choice for those looking for superior performance and high efficiency in multiple filtration applications. Ensure the highest quality in your processes with our filters, which combine Chemical compatibility, high retention capacity and easy discarding.
