Pleated activated carbon filters are suitable for the adsorption of odors from smoke, cigarettes, grease, solvents in painting facilities and also chemical gases such as chlorine in paper and pulp industries, among other substances.
Each case will require a specific type of activated carbon; therefore, always consult the technical department.
The lifespan of activated carbon depends on the type and quantity of compounds to be adsorbed. Prefiltration is recommended.
OBS.: They are manufactured in various sizes. For more information, please contact our technical/sales department.

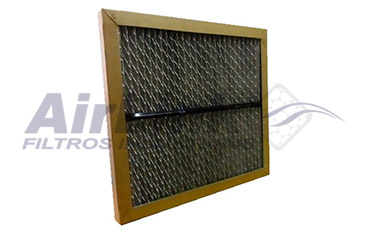

The activated carbon pleated filters manufactured by AirLink Filters, model AL-PL/CA they adsorb odors and harmful, corrosive, or irritating gases. Activated carbon is the most widely used adsorbent in air purification and pollutant control.
Manufactured with rigid cardboard or metal frames, and with a synthetic fiber filter element impregnated with activated carbon micro granules.
The activated carbon pleated filters model Airlink filtros AL-PL/CA they are produced with a slotted rigid cardboard frame and a filter element (synthetic blanket) impregnated with activated carbon micro granules.
Features | Pleated | Pleated | Pleated |
| Standard dimensions | 595 x 595 x 50 mm | 595 x 295 x 50 mm | 500 x 500 x 50 mm |
| Pressure drop | 100 Pa | 100 Pa | 100 Pa |
| Recommended flow rate | 2500 m3 /h | 1250 m3 /h | 1.800 m3 /h |
OBS.: They are manufactured in various dimensions; for more information, please consult our technical/commercial department.
The filters AirLink they are designed for easy installation in ducts and air conditioning systems. To maximize filter efficiency and prevent a reduction in adsorption power, especially in environments with high levels of air pollution, We recommend efficient pre-filtration this helps remove large particles before the air reaches the activated carbon filter.
