Filtration class G1 (ABNT) compliant NBR 16101:2012.

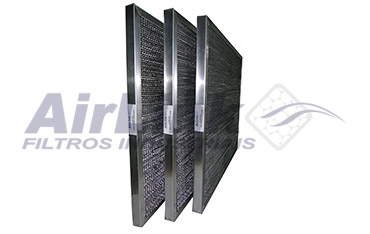

The metal air filters manufactured by AirLink Filtros, modelo AL-TA The “Honeycomb” type filters were designed to operate in systems with high concentrations of dust or grease that require a washable and recoverable filter.
Made entirely of aluminum.
Maximum relative humidity: 100%
Maximum operating temperature: 80 °C
Dimensions mm | Caudal (mᵌ/h) | Initial loss (Pa) | Final loss (Pa) |
| 295 x 295 x 50 | 800 | 40 | 90 |
| 295 x 595 x 50 | 1600 | 40 | 90 |
| 495 x 495 x 50 | 2200 | 40 | 90 |
| 595 x 595 x 50 | 3200 | 40 | 90 |
Data corresponding to standard filters obtained under test conditions with an air speed of 2.5 m/s.
OBS: For manufacturing in other dimensions, please consult our technical-commercial department.
