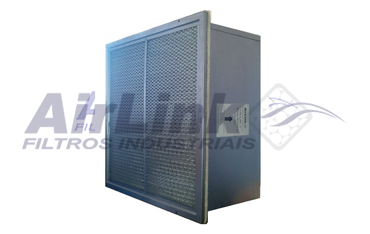

The high-temperature filters manufactured by Airlink Filters, model AL-HT Available in four filtration classes according to the current standard NBR 16101, they were specially designed for applications in paint ovens and stoves.
Made with a galvanized steel sheet frame, the filters AL-HT they feature a perfect seal thanks to their sealing between the filter medium and the frame, made with a silicone-free adhesive resistant to high temperatures and with a flexible gasket that ensures a hermetic seal during installation.
The high-temperature filters manufactured by Airlink Filtros, modelo AL-HT available in four filtration classes according to the current standard NBR 16101, these filters were specially designed for use in paint booths and ovens, suitable for operating at temperatures up to 250 °C. The filters and their components are completely free of substances that could damage the paint (e.g., silicone). The frame is made of galvanized steel sheet, and the special high-temperature filter medium consists of pleated glass microfiber paper with aluminum spacers. Their robust construction ensures consistent airflow.
Uniform airflow and low pressure loss result in energy savings. The filters are supplied with high-temperature seals that guarantee 100% airtightness.
Dimensions mm | Caudal (m³/h) | Filtration class | Average efficiency for 0.4 μm particles (%) | Initial pressure loss (Pa) – Velocity 2.5 m/s | Final pressure drop (Pa) |
| 595x290x292 | 2100 | M6 (ABNT) 16101 | 60 ˂ Ef ˂ 80 | 65 | 450 |
| 595x595x292 | 5000 | M6 (ABNT) 16101 | 60 ˂ Ef ˂ 80 | 65 | 450 |
| 595x290x292 | 2100 | F7 (ABNT) 16101 | 80 ˂ Ef ˂ 90 | 80 | 450 |
| 595x595x292 | 5000 | F7 (ABNT) 16101 | 80 ˂ Ef ˂ 90 | 80 | 450 |
| 595x290x292 | 2100 | F8 (ABNT) 16101 | 90 ˂ Ef ˂ 95 | 85 | 450 |
| 595x595x292 | 5000 | F8 (ABNT) 16101 | 90 ˂ Ef ˂ 95 | 85 | 450 |
| 595x290x292 | 2100 | F9 (ABNT) 16101 | 95 ˂ Ef | 95 | 450 |
| 595x595x292 | 5000 | F9 (ABNT) 16101 | 95 ˂ Ef | 95 | 450 |
High-temperature fine filters model AL-HT they are produced with a filter medium of glass microfiber paper interleaved with corrugated aluminum separators, which provides a large filtration surface and greater uniformity in airflow.
For added security, they have protective mesh of the filter element on both sides.
