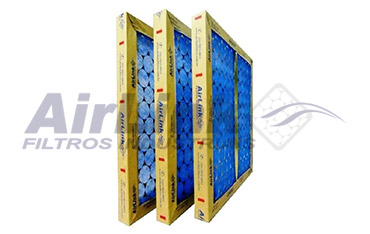

Disposable fiberglass air filters manufactured by AirLink Filters, model AL-MP/FV they are made with reinforced cardboard frames and perforated metal mesh at the air inlet and outlet, which guarantees high levels of resistance and dimensional stability.
The filter medium consists of a fiberglass blanket with a high dust accumulation capacity.
Maximum working temperature (cardboard frame): 45 °C
Maximum relative humidity: 60%
Filtration classes according to current standards ABNT NBR-16101 / EN779:2012 G2/G3/G4.
Dimensions mm | Caudal m³/h | Initial loss (Pa) | Final loss (Pa) |
| 300 x 300 x 50 | 800 | 30 | 200 |
| 300 x 600 x 50 | 1600 | 30 | 200 |
| 500 x 500 x 50 | 2200 | 30 | 200 |
| 500 x 600 x 50 | 2700 | 30 | 200 |
| 600 x 600 x 50 | 3200 | 30 | 200 |
Data corresponding to standard filters obtained under test conditions with an air speed of 2.5 m/s – the data above corresponds to filter class G3 (ABNT).
OBS: For manufacturing in other dimensions, please consult our technical-commercial department.
