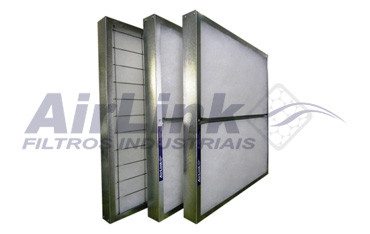

Air filter blankets manufactured by AirLink Filtros, model AL-PM These filters replace conventional cardboard-framed filters. This alternative offers significant savings for coarse filtration systems, requiring only the filter element to be changed after saturation, thus reducing operating costs for maintenance and disposal.
Made entirely of galvanized steel with a support mesh at the air outlet, also available in stainless steel or aluminum options.
For the use of blankets, filtration classes according to current standards ABNT NBR-16101 / EN779:2012 G2/G3/G4/M5.
Dimensions mm | Flow rate (m³/h) |
| Thickness 25 to 50 mm | Speed 2,5 M/S |
| 400 × 400 | 1165 |
| 400 × 500 | 1490 |
| 500 × 500 | 1900 |
| 500 × 600 | 2320 |
| 600 × 600 | 2820 |
Data relating to standard filters obtained under test conditions with air speed of 2.5 m/s – class G3 (ABNT).
OBS: For manufacturing in other sizes, please consult our technical-commercial department.
